Features
1. Portable solar power system, silent working without noise, shockproof, dustproof, green energy, environmental protection, health, for no electricity areas or travel to provide convenient new energy power;
2. Simplified input and output device, no installation and debugging, simple operation, just install and use;
3. Built-in maintenance free battery, 4PCs of DC12V output, clean electricity, has overcharge, over discharge, overload, and other full-featured electronic protection functions;
4. USB5V fast charging, adapt to mobile phones and other digital products emergency power supply;
5. The main power box case by cold plate welding, surface painting, beautiful appearance, portable product, easy to move;
6. With high efficiency solar panels, toughened glass, aluminum frame pressure layer, fashionable and beautiful, solid and practical, easy to carry, transport;
7. Build in radio, and card / usb reader mp3 play function;
8. The standard configuration with USB charging cable and DC LED bulbs with cable, for your lighting, mobile phone charging and other basic life required electricity.
2. Simplified input and output device, no installation and debugging, simple operation, just install and use;
3. Built-in maintenance free battery, 4PCs of DC12V output, clean electricity, has overcharge, over discharge, overload, and other full-featured electronic protection functions;
4. USB5V fast charging, adapt to mobile phones and other digital products emergency power supply;
5. The main power box case by cold plate welding, surface painting, beautiful appearance, portable product, easy to move;
6. With high efficiency solar panels, toughened glass, aluminum frame pressure layer, fashionable and beautiful, solid and practical, easy to carry, transport;
7. Build in radio, and card / usb reader mp3 play function;
8. The standard configuration with USB charging cable and DC LED bulbs with cable, for your lighting, mobile phone charging and other basic life required electricity.
Product Introduction
Portable solar power system produced by our company is from solar panel, solar controller, battery and inverter, through the professional assembling to be an easy using product; after some times of product upgrading, stands on the head of solar product peer. The product has many highlights, easy installation, maintenance free, safety and easy to solve the basic use of electricity...... " Green new energy, Lights all over the world"!
Specification
Model | Tsolar/SD-11 |
Input | |
Voltage 1 | 12.6V(From Adaptor) |
Voltage 2 | 18V(From Solar Panel) |
Output | |
DC Voltage | DC5V x 2, DC12Vx4 |
Display | |
LED/LCD | LED Indicators |
Built In Battery | |
Battery Type | Lithium Battery |
Battery Voltage | 12V |
Battery Capacity | 7.2AH |
Over Voltage Protection | 14.8V |
Built-In Solar Controller | |
Solar Controller Type | PWM |
Max Solar Charger Current | 3A |
Solar Panel with Cable | |
Solar Panel Type | Poly Solar Panel |
Power | 10W/18V |
Dimension, D x W x H(mm) |
340*240*17 |
Weight(Kg) | 1.2 |
Physical | |
Shell Material | Aluminum Alloy |
Dimension, D x W x H(mm) |
190*75*135 |
Weight(Kg) | 1.7 |
Multimedia applications | |
With radio and MP3 function | |
Accessories | |
3W LED bulb*2 | |
E27holder+switch+5m cable 0.2MM2*2 | |
1-4USB cable | |
Operating Environment | |
Humidity | 5% to 95% Relative Humidity(Non-Condensing) |
Operating Temperature | 0℃-55℃ |
Storage Temperature | (-)10℃-60℃ |

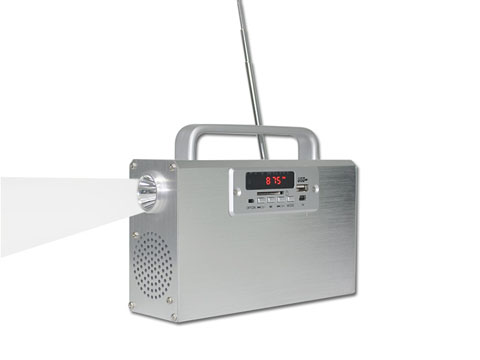

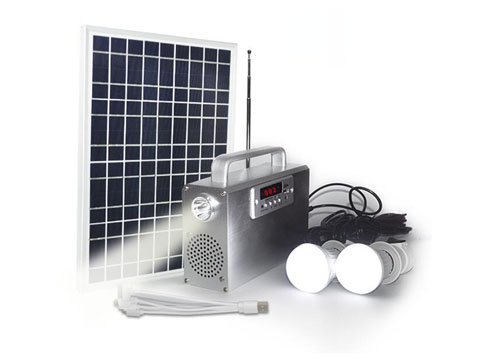

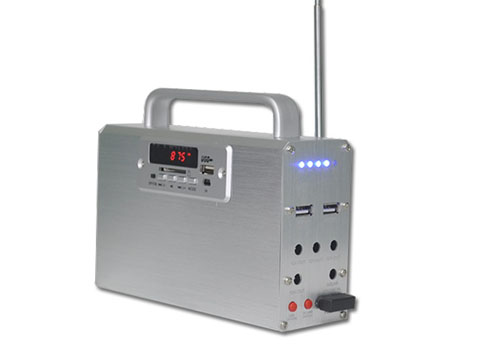

Product Pictures
