Features
1. Portable solar lighting kits with music player, two main parts included,portable main power box with music player and solar panel. Beautiful appearance for power box, perfect for home use in lighting and music playing.
2. Simplified input and output device, no installation and debugging, simple operation, just install and use;
3. Protections with over charging/discharging, anti charge for solar panel;
4. High quality product with lithium battery inside for long life span,
5. 2PCs of DC3.7V output for lighting, USB charging for mobile device.
6. Music player with speaker built in
7. Aluminum alloy case, keep metal feeling, keep new.
2. Simplified input and output device, no installation and debugging, simple operation, just install and use;
3. Protections with over charging/discharging, anti charge for solar panel;
4. High quality product with lithium battery inside for long life span,
5. 2PCs of DC3.7V output for lighting, USB charging for mobile device.
6. Music player with speaker built in
7. Aluminum alloy case, keep metal feeling, keep new.
Product Introduction
Portable solar power system produced by our company is from solar panel, solar controller, battery, through the professional assembling to be an easy using product; after some times of product upgrading, stands on the head of solar product peer. The product has many highlights, easy installation, maintenance free, safety and easy to solve the basic use of electricity...... " Green new energy, Lights all over the world"!
Specification
| Model | Tsolar/SD-10 |
| Input | |
| Voltage | 6V(From Solar Panel) |
| Output | |
| DC Voltage | DC5Vx2A，DC3.7Vx2 |
| Display | |
| LED/LCD | LED |
| Built-in Battery | |
| Battery Type | Lithium battery |
| Battery Voltage | 3.7V |
| Battery Capacity | 3750mAh |
| Over Voltage Protection | 4.3V |
| Built-in Solar Controller | |
| Solar Controller Type | PWM |
| Max Solar Charger Current | 1A |
| Solar Panel(ref) | |
| Solar Panel Type | Poly Solar Panel |
| Power | 3W/6V |
| Dimension,D x W x H(mm) | 220*135*18mm |
| Weight(Kg) | 0.38KG |
| Physical | |
| Shell Material | Aluminum Alloy |
| Dimension,D x W x H(mm) | 100*57*135mm |
| Weight(Kg) | 0.4KG |
| Multimedia Applications | |
| With Music Player | |
| Accessories | |
| 3W3.7V LED bulb*2 | |
| E27holder+switch+5m cable 0.2MM2*2 | |
| 1-4USB cable | |
| Operating Environment | |
| Humidity | 5% to 95% Relative Humidity(Non-Condensing) |
| Operating Temperature | 0℃-55℃ |
| Storage Temperature | (-)10℃-60℃ |

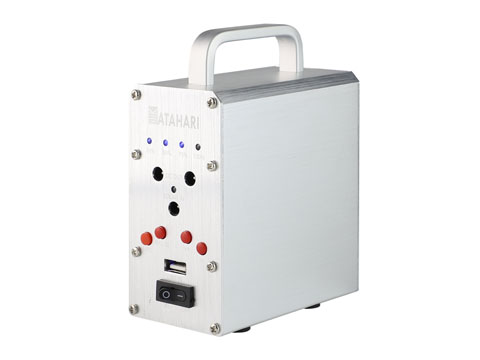

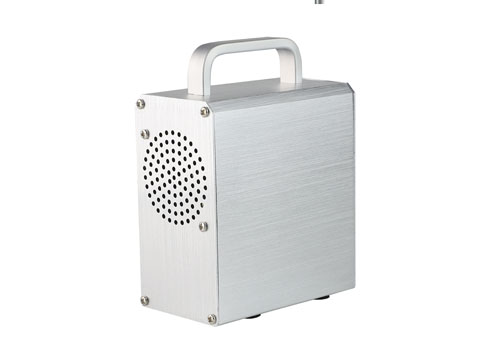

Product Pictures
