Features
1. Portable solar power system, silent working without noise, shockproof, dustproof, green energy, environmental protection, health, for no electricity areas or travel to provide convenient new energy power;
2. Simplified input and output device, no installation and debugging, simple operation, just install and use;
3. Built-in maintenance free battery, 6 PCs of DC12V output, 2 PCs of AC 220V output, clean electricity, have overcharge, over discharge, overload, high temperature, and other full-featured electronic protection functions;
4. USB5V fast charging, adapt to mobile phones and other digital products emergency power supply;
5. The main power box case by cold plate welding, surface painting, beautiful appearance, portable product, easy to move;
6. With high efficiency solar panels, toughened glass, aluminum frame pressure layer, fashionable and beautiful, solid and practical, easy to carry, transport;
7. With battery power detection and digital display, let you know the state of electricity;
8. The standard configuration with USB charging cable and DC LED bulbs with cable, for your lighting, mobile phone charging and other basic life required electricity.
2. Simplified input and output device, no installation and debugging, simple operation, just install and use;
3. Built-in maintenance free battery, 6 PCs of DC12V output, 2 PCs of AC 220V output, clean electricity, have overcharge, over discharge, overload, high temperature, and other full-featured electronic protection functions;
4. USB5V fast charging, adapt to mobile phones and other digital products emergency power supply;
5. The main power box case by cold plate welding, surface painting, beautiful appearance, portable product, easy to move;
6. With high efficiency solar panels, toughened glass, aluminum frame pressure layer, fashionable and beautiful, solid and practical, easy to carry, transport;
7. With battery power detection and digital display, let you know the state of electricity;
8. The standard configuration with USB charging cable and DC LED bulbs with cable, for your lighting, mobile phone charging and other basic life required electricity.
Product Introduction
Portable solar power system produced by our company is from solar panel, solar controller, battery and inverter, through the professional assembling to be an easy using product; after some times of product upgrading, stands on the head of solar product peer. The product has many highlights, easy installation, maintenance free, safety and easy to solve the basic use of electricity...... " Green new energy, Lights all over the world"!
Specification
Model | Tsolar/SA-20-1 | Tsolar/SA-20-2 | Tsolar/SA-20-3 |
Built-in Inverter | 300W | 500W | 1000W |
Input | |||
Voltage 1(Optional) | AC220V/50Hz | ||
Voltage 2(From Solar Panel) | 18V | ||
Output | |||
AC Voltage | AC220V | ||
Output Wave | Pure Sine Wave | ||
DC Voltage | DC5V x 2, DC12Vx6 | ||
Display | |||
LED/LCD | Digital LCD Display | ||
Built-in Battery | |||
Battery Type | Lead Acid battery | ||
Battery Voltage | 12V | ||
Battery Capacity | 38AH | 65AH | 100AH |
Over Voltage Protection | 14.8V | ||
Built-in Solar Controller & Charger | |||
Solar Controller Type | PWM | ||
Max Solar Charger Current | 10A | 20A | 20A |
Solar Panel(ref) | |||
Solar Panel Type | Poly Solar Panel | ||
Power Panel Power | 80W/18V | 120W/18V | 200W/18V |
Dimension, D x W x H(mm) | 1030*665*30 | 1474*674*35 | 1482*992*35 |
Weight(Kg) | 8KG | 12KG | 15KG |
Physical | |||
Shell Material | Iron | ||
Dimension,D x W x H(mm) | 365*200*390 | 505*233*470 | 505*233*470 |
Weight(Kg) | 15KG | 28KG | 38KG |
Accessories | |||
3W LED bulb*2 | 3W LED bulb*2 | 3W LED bulb*2 | |
E27holder+switch+5m cable 0.2MM2*2 | E27holder+switch+5m cable 0.2MM2*2 | E27holder+switch+5m cable 0.2MM2*2 | |
1-4USB cable | 1-4USB cable | 1-4USB cable | |
Operating Environment | |||
Humidity | 5% to 95% Relative Humidity(Non-Condensing) | ||
Operating Temperature | 0℃-55℃ | ||
Storage Temperature | (-)10℃-60℃ |
Tsolar/SA-20-1 |

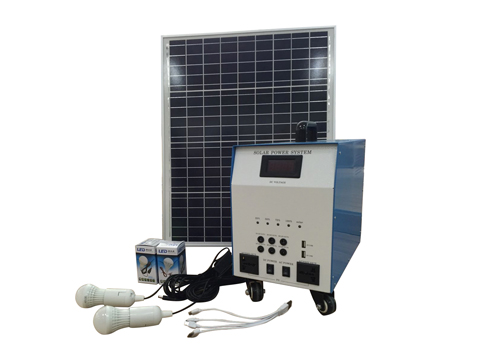

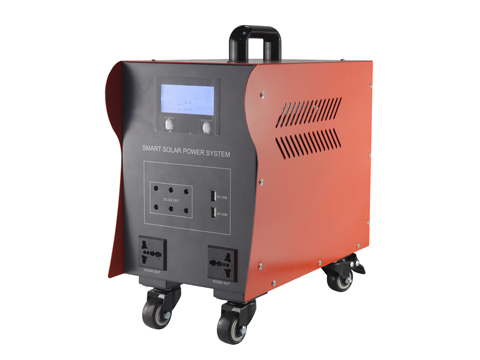

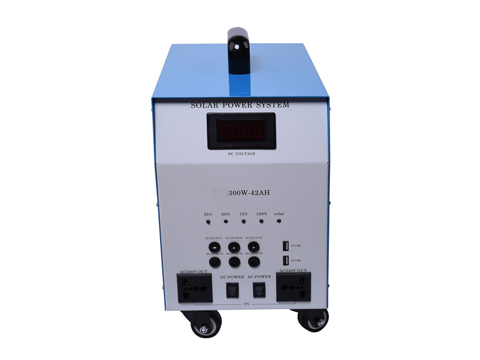

Product Pictures
