Tsolar PAYG-31

 Pay As You Go Solar System     |      2021-12-06 19:20
Features
1. Portable solar power system, silent working without noise, shockproof, dustproof, green energy, environmental protection, health, for no electricity areas or travel to provide convenient new energy power;

2. Simplified input and output device, no installation and debugging, simple operation, just install and use;

3. Built-in maintenance free battery, 6 PCs of DC12V output, 2 PCs of AC 220V output, clean electricity, have overcharge, over discharge, overload, high temperature, and other full-featured electronic protection functions;

4. USB5V fast charging, adapt to mobile phones and other digital products emergency power supply;

5. The main power box case by cold plate welding, surface painting, beautiful appearance, portable product, easy to move;

6. With high efficiency solar panels, toughened glass, aluminum frame pressure layer, fashionable and beautiful, solid and practical, easy to carry, transport;

7. With battery power detection and digital display, let you know the state of electricity;

8. With smart Pay As You Go function

9. The standard configuration with USB charging cable and DC LED bulbs with cable, for your lighting, mobile phone charging and other basic life required electricity.
Product Introduction
Portable solar power system produced by our company is from solar panel, solar controller, battery and inverter, through the professional assembling to be an easy using product; after some times of product upgrading, stands on the head of solar product peer. The product has many highlights, easy installation, maintenance free, safety and easy to solve the basic use of electricity......     " Green new energy, Lights all over the world"!
Specification
Model Tsolar/PAYG-31-1 Tsolar/PAYG-31-2 Tsolar/PAYG-31-3
Built-in Inverter 300W 500W 1000W
Input
Voltage 1(Optional) AC220V/50Hz
Voltage 2(From Solar Panel) 18V
Output
AC Voltage AC220V
Output Wave Pure Sine Wave
DC Voltage DC5V x 2, DC12Vx6
Display
LED/LCD Digital LCD Display
Built-in Battery
Battery Type Lead Acid battery
Battery Voltage 11.1V
Battery Capacity 50AH 65AH 100AH
Over Voltage Protection 12.8V
Built-in Solar Controller & Charger
Solar Controller Type PWM
Max Solar Charger Current 10A 20A 20A
Solar Panel(ref)
Solar Panel Type Poly Solar Panel
Power Panel Power 100W/18V 150W/18V 200W/18V
Dimension, D x W x H(mm) 1030*665*30 1474*674*35 1482*992*35
Weight(Kg) 8KG 12KG 15KG
Physical
Shell Material Iron
Dimension,D x W x H(mm)
Weight(Kg) KG KG KG
Accessories
  3W LED bulb*2 3W LED bulb*2 3W LED bulb*2
  E27holder+switch+5m cable 0.2MM2*2 E27holder+switch+5m cable 0.2MM2*2 E27holder+switch+5m cable 0.2MM2*2
  1-4USB cable 1-4USB cable 1-4USB cable
Operating Environment
Humidity 5% to 95% Relative Humidity(Non-Condensing)
Operating Temperature 0℃-55℃
Storage Temperature (-)10℃-60℃

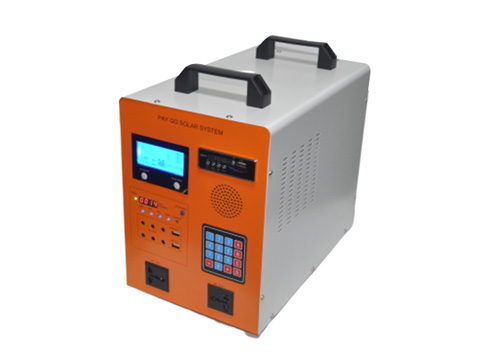

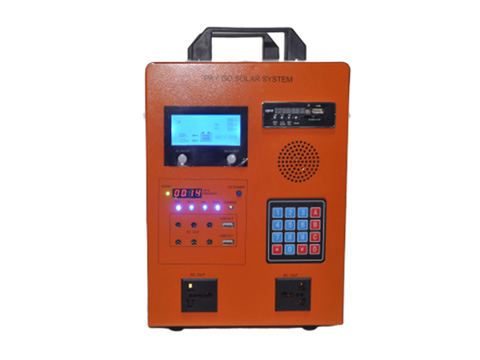

Product Pictures
