Tsolar PI-50

 Pure Sine Wave Inverter     |      2021-12-07 10:24
Features
1.Universal Output socket.

2.LED display shows ac and dc voltage.

3.This power inverter instantly convert low voltage DC power to high voltage AC household power.

4.High reliability and low failure rate by using the advanced Double-CPU single chip intellectual control technology.

5.Pure sine wave output. Small, light and artistic, benefited from adopting the SMD pastern technology.

6.Cooling fan is intellectual controlled, and its working status is controlled by CPU, which mostly increased its service life and helps to save the power consumption, improve work efficiency and lower the working noise.

7.You can use many places. Such as Solar electric energy generation, Wind power generation,Communication equipment, Industrial intellectual control system, Small sized emergency power supply system.
Product Introduction
Pure Sine Wave inverters converts DC energy from solar modules into clean, stable AC power that is ideal for power demanding appliances. Solar inverters are designed for high efficiency: Integrated advanced microprocessor technology combined with pure sine wave output makes them the perfect choice for use with high-end electronics and electrical equipment.
Specification
Model PSW-300 PSW-600 PSW-1000 PSW-1500
Output power 300W 600W 1000W 1500W
Display method LED display LCD display LCD display LCD display
Input voltage 12V/24V/48V/60V/72Vdc
Input range 12Vdc(10-15),24Vdc(20-30),48Vdc(40-60),60Vdc(50-75),72Vdc(60-90)
Low voltage protection 12V(10.0V±0.3),24V(20.0V±0.3),48V(40.0V±0.3),60V(50.0V±0.3),72V(60.0V±0.3)
Over voltage protection 12V(15.0V±0.3),24V(30.0V±0.3),48V(60.0V±0.3),60V(75.0V±0.3),72V(90.0V±0.3)
Recovery voltage 12V(13.2V±0.3),24V(25.5V±0.3),48V(51.0V±0.3),60V(65.0V±0.3),72V(78.0V±0.3)
No-load current 0.35A 0.50A 0.60A 0.70A
Overload protection 300W>110% 600W>110% 1000W>110% 1500W>110%
output voltage 110V/220Vac 110V/220Vac 110V/220Vac 110V/220Vac
Output frequency 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz
Output waveform Pure sine wave Pure sine wave Pure sine wave Pure sine wave
Overheating protection 80°±5° 80°±5° 80°±5° 80°±5°
Waveform THD ≤3% ≤3% ≤3% ≤3%
Conversion efficiency 90% 90% 90% 90%
Cooling method Fan cooling Fan cooling Fan cooling Fan cooling
Dimensions 200*110*59mm 228*173*76mm 310*173*76mm 360*173*76mm
product weight 1.0kg 2.0kg 3.0kg 3.6kg

Model PSW-300 PSW-600 PSW-1000 PSW-1500
Output power 300W 600W 1000W 1500W
Display method LED display LCD display LCD display LCD display
Input voltage 12V/24V/48V/60V/72Vdc
Input range 12Vdc(10-15),24Vdc(20-30),48Vdc(40-60),60Vdc(50-75),72Vdc(60-90)
Low voltage protection 12V(10.0V±0.3),24V(20.0V±0.3),48V(40.0V±0.3),60V(50.0V±0.3),72V(60.0V±0.3)
Over voltage protection 12V(15.0V±0.3),24V(30.0V±0.3),48V(60.0V±0.3),60V(75.0V±0.3),72V(90.0V±0.3)
Recovery voltage 12V(13.2V±0.3),24V(25.5V±0.3),48V(51.0V±0.3),60V(65.0V±0.3),72V(78.0V±0.3)
No-load current 0.35A 0.50A 0.60A 0.70A
Overload protection 300W>110% 600W>110% 1000W>110% 1500W>110%
output voltage 110V/220Vac 110V/220Vac 110V/220Vac 110V/220Vac
Output frequency 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz 50Hz/60Hz
Output waveform Pure sine wave Pure sine wave Pure sine wave Pure sine wave
Overheating protection 80°±5° 80°±5° 80°±5° 80°±5°
Waveform THD ≤3% ≤3% ≤3% ≤3%
Conversion efficiency 90% 90% 90% 90%
Cooling method Fan cooling Fan cooling Fan cooling Fan cooling
Dimensions 200*110*59mm 228*173*76mm 310*173*76mm 360*173*76mm
product weight 1.0kg 2.0kg 3.0kg 3.6kg

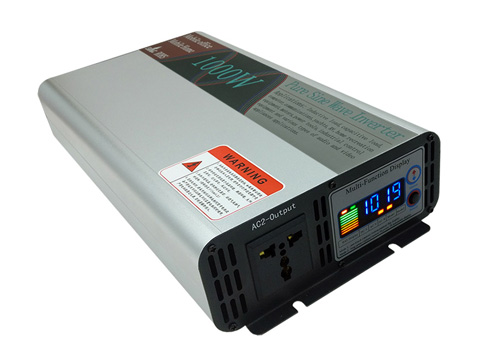

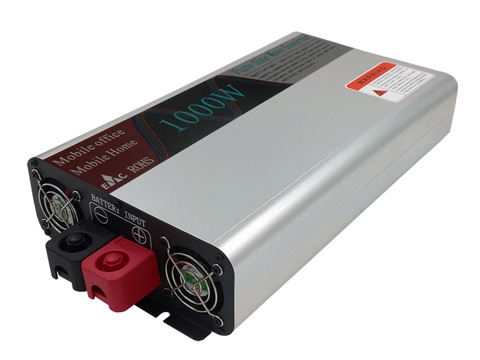

Product Pictures
