Tsolar SP-70

 Solar Panel     |      2020-04-10 13:39
Features
High conversion efficiency
Low power tolerance of 0~+3%
Low degradation under light exposure
Can withstand high wind-pressure, snow load and extreme temperature
Product Introduction
The solar panel is the foundation of any successful solar system or solar project，designed for residential and utility applications, rooftop or ground mount. Solar panels are in a range of formats and high conversion efficiency. Anti-reflective and self-cleaning surface reduces power loss from dirt dust. Excellent mechanical load resitance: Certified to withstand high wind loads and snow loads.
Specification
Monocrystalline单晶
Peak power
Pma（W）功率		 Max.power voltage
Vm(V)
工作电压		 Max.power
current Im(A)工作电流		 Open-circuit
Voltage Voc(V)开路电压		 Short-circuit current Isc(A)
短路电流		 Dimensions
（mm）尺寸		 No. of Cells电池片 Shaped Solar Cell(mm) Weight(KG)重量
10 17.5 0.61 21.3 0.68 330*300*17 36 31.25*62.5 1.2
15 17.1 0.88 21.5 0.97 420*340*17 36 78*39 1.9
20 17.5 1.14 22 1.19 630*330*17 36 62.5*62.5 2.2
25 18.2 1.37 22.4 1.51 550*360*25 36 78*52 2.4
30 17.8 1.69 22.2 1.86 445*550*30 36 125*41.67 3
40 18.4 2.18 22.6 2.39 425*665*30 36 156*39 3.5
45 17.8 2.53 22.2 2.78 632*550*30 36 125*62.5 4
45* 18.2 2.48 22.4 2.72 500*665*30 36 156*48 4
50 18.2 2.75 22.4 3.03 537*665*30 36 156*52 4.5
55 18.2 3.02 22.4 3.33 600*665*30 36 156*58.5 5
60 17.8 3.37 22.2 3.71 600*665*30 36 156*58.5 6
60 17.8 3.37 22.2 3.71 840*550*30 72 125*41.67 6
75 18.2 4.12 22.3 4.53 770*665*30 36 156*78 6.2
80 18.4 4.35 22.6 4.79 770*665*30 36 156*78 6.2
90 17.8 5.06 22.2 5.57 1195*550*30 36 125*125 8
100 18.2 5.48 22.1 6.04 1030*665*30 72 156*52 8
105 18.3 5.71 22.1 5.71 1030*665*30 72 156*52 8
110 18.4 5.97 22.2 6.58 1150*674*30 36 156*117 9
115 18.4 6.25 22.3 6.88 1150*674*30 36 156*117 9
120 18.3 6.52 22.3 7.17 1150*674*30 36 156*117 9
130 18.2 7.14 22.3 7.85 1474*674*35 36 156*156 12
140 18.3 7.69 22.4 8.46 1474*674*35 36 156*156 12
150 18.4 8.15 22.4 9.01 1474*674*35 36 156*156 12
160 18.5 8.7 22.7 9.57 1474*674*35 36 156*156 12
170 35.8 4.7 44.2 5.21 1580*808*35 72 125*125 15
180 36.2 4.9 44.3 5.72 1580*808*35 72 125*125 15
190 36.4 5.2 44.5 5.82 1580*808*35 72 125*125 15
200 36.4 5.49 44.5 6.04 1580*808*35 72 125*125 15
200 36.4 5.49 44.3 6.04 1330*990*35 72 104*156 15
210 36.4 5.2 44.5 6.34 1482*992*35 72 117*156 15
220 36.5 6.02 44.2 6.7 1482*992*35 72 117*156 15
230 27.6 5.8 44.3 9.17 1482*992*35 54 156*156 17.5
250 30.7 8.15 37.7 8.96 1650*992*40 60 156*156 20
300 35.6 8.43 44.8 9.27 1956*992*50 72 156*156 23
Polycrystalline多晶
Peak power
Pma（W）功率		 Max.power voltage
Vm(V)工作电压		 Max.power
current Im(A)工作电流		 Open-circuit
Voltage Voc(V)开路电压		 Short-circuit current Isc(A)短路电流 Dimensions
（mm）尺寸		 No. of Cells电池片 Shaped Solar Cell(mm) Weight(KG)重量
15 17.2 0.88 21.1 0.97 420*340*17 36 78*39 1.9
25 17.5 1.37 22.1 1.53 550*360*25 36 78*52 2.4
30 17.8 1.68 22.2 1.82 425*665*30 36 156*39 3.5
35 17.9 1.95 21.3 2.19 425*665*30 36 156*39 3.5
40 18.1 2.2 22.1 2.43 500*665*30 36 156*48 4
45 18.2 2.48 22.2 2.72 500*665*30 36 156*48 4
*45 18.1 2.48 22.1 2.72 537*665*30 36 156*52 4.5
50 18.2 2.75 22.2 3.03 537*665*30 36 156*52 4.5
55 18.2 3.02 22.1 3.33 600*665*30 36 156*58.5 5
60 18.1 3.29 22.1 3.62 770*665*30 36 156*78 6.2
65 18.2 3.57 22.2 3.92 770*665*30 36 156*78 6.2
70 18.3 3.82 22.3 4.2 770*665*30 36 156*78 6.2
75 18.4 4.07 22.4 4.48 770*665*30 36 156*78 6.2
80 18.1 4.41 21.9 4.85 1030*665*30 36 156*52 8
85 18.2 4.67 22 5.13 1030*665*30 36 156*52 8
90 18.3 4.91 22.1 5.4 1030*665*30 36 156*52 8
95 18.4 5.16 22.2 5.67 1030*665*30 36 156*52 8
100 18.5 5.4 22.3 5.94 1030*665*30 36 156*52 8
*100 18.5 5.4 22.3 5.94 1150*674*30 36 156*117 9
105 18.1 5.8 22.1 6.38 1150*674*30 36 156*117 9
110 18.2 6.05 22.2 6.65 1150*674*30 36 156*117 9
120 18.1 6.6 221 7.29 1474*674*35 36 156*156 12
130 18.2 7.14 22.2 7.85 1474*674*35 36 156*156 12
140 18.3 7.65 22.3 8.41 1474*674*35 36 156*156 12
150 18.4 8.15 22.4 8.96 1474*674*35 36 156*156 12
160 35.9 4.9 43.9 5.72 1330*990*35 72 104*156 15
170 36.1 4.7 44 5.18 1330*990*35 72 104*156 15
180 36.2 4.9 44.1 5.72 1330*990*35 72 104*156 15
190 36.4 5.2 44.2 5.82 1330*990*35 72 104*156 15
200 36.1 5.49 44.3 6.04 1482*992*35 72 117*156 15
210 36.2 5.2 44.4 6.34 1482*992*35 72 117*156 15
220 36.3 6.06 44.5 6.6 1482*992*35 72 156*156 15
230 29.3 7.84 36 8.63 1650*992*40 60 156*156 18
240 29.4 8.16 37 8.98 1650*992*40 60 156*156 18
250 36.1 6.92 44.1 7.6 1956*992*50 72 156*156 23
260 36.2 7.18 44.2 7.9 1956*992*50 72 156*156 23
270 36.3 7.43 44.3 8.18 1956*992*50 72 156*156 23
280 36.4 7.69 44.4 8.45 1956*992*50 72 156*156 23
290 36.5 7.93 44.5 8.73 1956*992*50 72 156*156 23

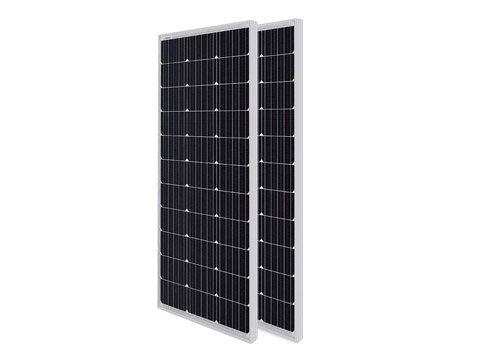

Product Pictures
